Nelson Big Gun Sprinklers

                                Nelson Big Gun® Sprinklers are ideal for a wide range of applications. With a full range of models available (download the brochure with model options), flow rates of 30-1200 GPM (6.8-275 m3/hr) can be achieved with maximum uniformity to match a variety of needs.

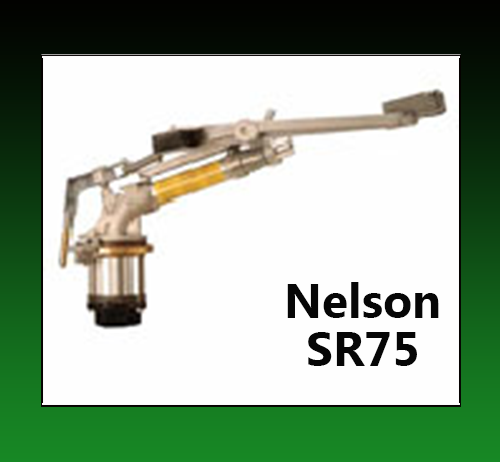

Nelson SR75 24º Sprinkler & Nozzles

Water-Reel Compatibility

Decal & Nozzle Kit Description

B140

4 Nelson Taper Ring Nozzles (.40", .45", .50", .55"), Galvanized 1 1/2" Close Nipple & Performance Decal

E140

4 Nelson Taper Ring Nozzles (.40", .45", .50", .55"), Galvanized 1 1/2" Close Nipple & Performance Decal

T/E180

6 Nelson Taper Ring Nozzles (.40", .45", .50", .55", .65", .75"), Galvanized 1 1/2" Close Nipple & Performance Decal

T/E200S

7 Nelson Taper Ring Nozzles (.40", .45", .50", .55", .60", .70", .80"), Galvanized 1 1/2" Close Nipple & Performance Decal

 T/E200L 5 Nelson Taper Ring Nozzles (.55", .60", .65", .70", .75"), Galvanized 1 1/2" Close Nipple & Performance Decal
 T/E210 6 Nelson Taper Ring Nozzles (.50", .55", .60", .65", .70", .75"), Galvanized 1 1/2" Close Nipple & Performance Decal
 E200SST* 5 Nelson Taper Ring Nozzles (.40", .45", .50", .55", .60"), Galvanized 1 1/2" Close Nipple & Performance Decal
 T200LSC 3 Nelson Taper Ring Nozzles (.65", .75", .80"), Galvanized 1 1/2" Close Nipple & Performance Decal
 *When ordering sprinkler & nozzle kit for E200SST you must order 2 of each because of the dual gun operation

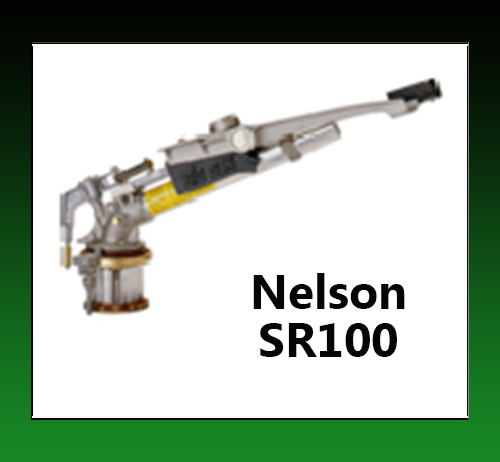

Nelson SR100 24º Sprinkler & Nozzles

Water-Reel Compatibility

Decal & Nozzle Kit Description

T23x600

T25x750

T27x980

7 Ring Nozzles (.71", .79", .81", .86", .89", .93", .96") with Ring Nozzle Body and Cap (No adapter flange necessary), & Performance Chart
















Nelson SR150 24º Sprinkler & Nozzles

Water-Reel Compatibility

Decal & Nozzle Kit Description

T30x660

T/E30x980

T/E30x1200

T/E33x1120

T/E37x1080

T/E37x1220

7 Ring Nozzles (.86", .97", 1.08", 1.18", 1.26", 1.34", 1.41") with Ring Nozzle Body and Cap (No adapter flange necessary), & Performance Chart

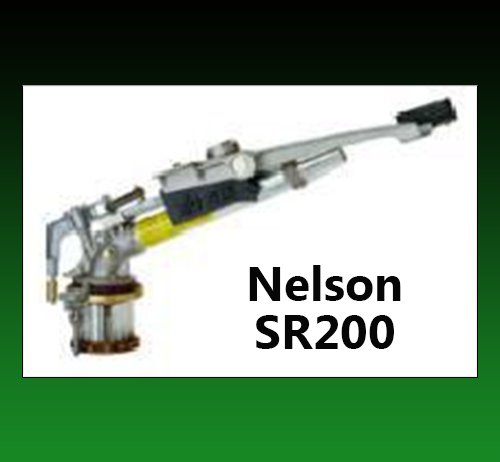

Nelson SR200 24º Sprinkler & Nozzles

Water-Reel Compatibility

Decal & Nozzle Kit Description

T/E40x1250

T/E40x1320

T/E45x1150

T/E41x1476

T/E45x1250

5 Ring Nozzles (1.29", 1.46", 1.56", 1.66") with Ring Nozzle, Body, Cap (No adapter flange necessary), & Performance Chart








Product Support
Get Operator & Part Manuals.
Download
View Printable PDF Nelson Brochure.
